heavy load cable reel power electric railway flat cart for industrial workshop

Name: heavy load cable reel power electric railway flat cart for industrial workshop
Brand: cable reel power electric railway flat cart
Price: 3200 USD

Wholesale heavy load cable reel power electric railway flat cart for industrial workshop from china suppliers

Brand Name : cable reel power electric railway flat cart

Model Number : cable reel power electric railway flat cart

Certification : CE ISO SGS

Place of Origin : Henan, China (Mainland)

MOQ : 1 set

Price : USD 3200~7500 set

Supply Ability : 100 set month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : cable reel power electric railway flat cart

Application : Industrial Filed

Color : Customized

Capacity : Customized

Running speed : 0-20m/min

after-sales Service Provided : Engineers available to service machinery

Contact Now

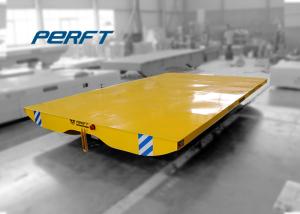

cable reel power electric railway flat cart for industrial workshop

This cable reel power electric railway flat cart for workshops transfer is usually used at ship yard, plant and factory, certain production line. The cable reel power electric railway flat cart for workshops transfer is powered by trailing cable. The cable reel power electric railway flat cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. The cable reel power electric railway flat cart construction is based on our world renowned die transfer table for workshops transfers and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our transfer table for workshops transfer is available in a number of configurations specifically designed to suit the needs of our customers.

Technical Parameter of transfer table for workshops transfer

Model		BTL-2t	BTL-20t	BTL-50t	BTL-100t	BDGS-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		0-20
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100
