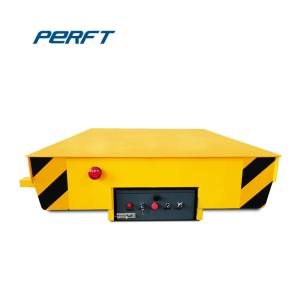

Heavy Cargo Transportation Self-Propelled Rail Transfer Cart
Introductions
PERFECT self-propelled rail flat carts are used to transport steel coils and pipes, die, machine parts, paper products for manufacturing industry. This self-propelled rail flat cart is designed to be an extremely cost effective, safe and flexible load moving alternative.
They are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The self-propelled rail flat cart is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.
Applications
Uses of self-propelled rail flat cart:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality self-propelled rail flat cart solution you need. They are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. Such kind of self-propelled rail flat cart can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 200 tons, we have the solution you need and each style can be designed for your specific application.
Technical parameters
| Rated load(t) | BTL-2t | BTL-5t | BTL-10t | BTL-20t | BTL-30t | BTL-40t | BTL-50t | BTL-63t | BTL-80t | BTL-100t | BTL-150t |
| Wheel base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Wheel quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor power(Kw) | 0.8 | 1.5 | 1.5 | 2.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running distance(m) | 25 | 25 | 25 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Rail inner gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Reference weight(t) | 2.3 | 3.3 | 3.8 | 5.5 | 6.3 | 7.2 | 7.6 | 10.3 | 12.1 | 13.9 | 26 |
Packaging and shipping
The Transfer Cart body is packed with tarp, the rial bogie wheel and parts will be packed with wooden case.For lenght is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the rial bogie is beyond above dimension, The Transfer Cart needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
